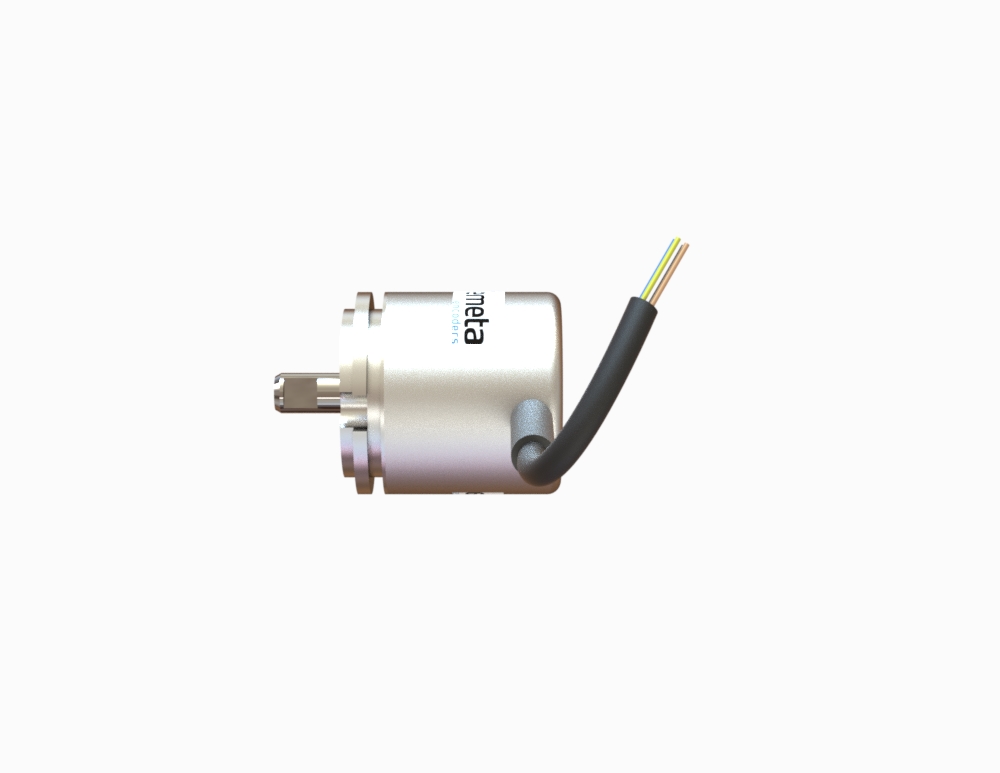

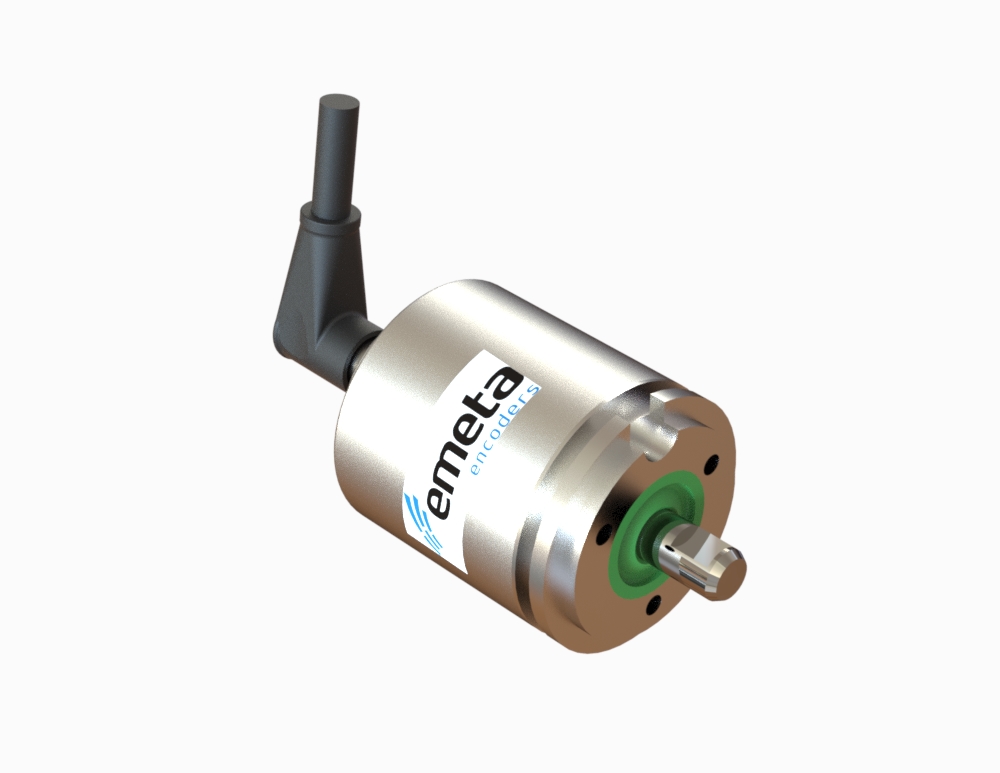

MA500 Incremental encoder, ø30 mm, 3 channels
Optical incremental encoder for length, diameter or relative positioning application. The encoder series may also be used for velocity feedback in montion Control applications. The MA500-series is only ø30mm in outer diameter, has a high encapsulation class mad polarity protected Power supply. All outputs are short circuit proof to fulfill rough handling in the field. The series is suitable for use in space limited applications. Resolutions can be chosen between 1 to 1250 ppr.
FUNCTIONS OF THE ENCODER
- Relative positioning
- Length, diameter or directional monitoring/measurements
SUITABLE APPLICATIONS
- Applications with space limitations
- Mobile machineries & Forrest Machines including forwarders
Additional information
| Funktion | Incremental encoder |
|---|---|
| Ytterdiameter | ø30 mm |
| Flänstyp | Synchro flange |
| Axeltyp | Solid shaft |
| Axeldimension | ø4 mm round, ø6 mm round, ø6 mm with flattening |

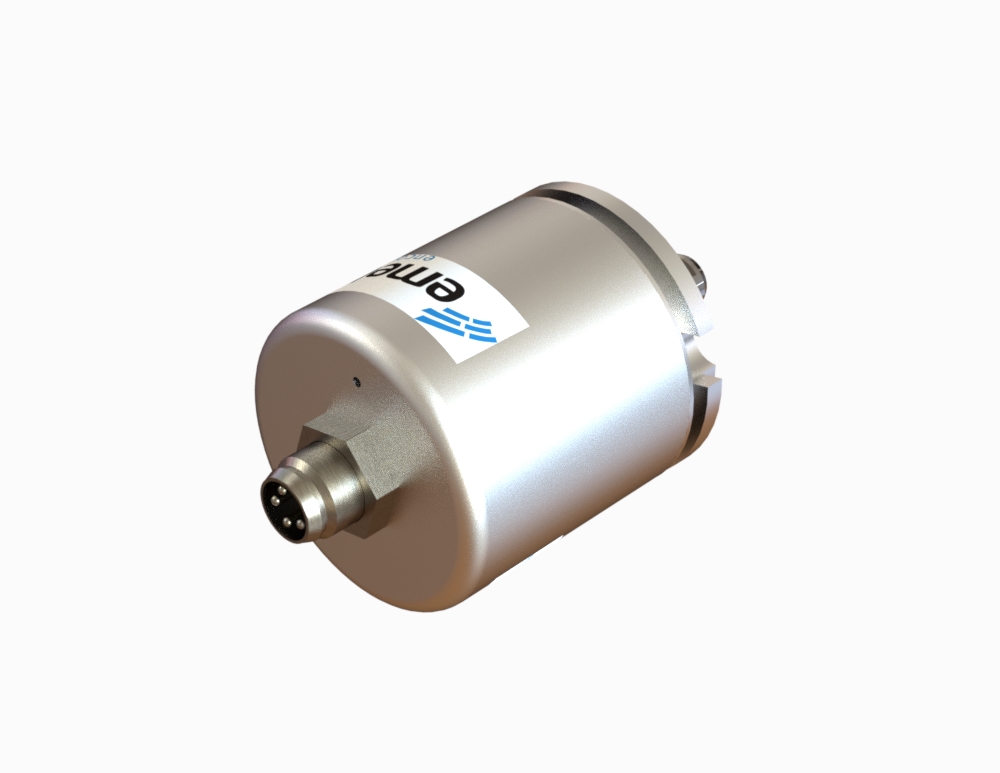

| Elektrisk anslutning | Cable, 5 pin M8, 8 pin M12 |
| Elektrisk anslutningsriktning | Axial, Radial |
| Matningsspänning | 5 Vdc, 5 – 30 Vdc, 7 – 35 Vdc |
| Elektriskt gränssnitt | TTL, HTL |
| Antal kanaler | 2 channels (A & B), 3 channels (A, B & 0-puls) |
| Ytbehandling | Anodized aluminium |
| Temperaturområde | -40º – 80ºC |
| Vibration | 20g at 20-2000 Hz |
| Shock | 200g @ 11ms |
